Accu-Scope EP Series Educational Microscope
$155.00
Skip to product information
Accu-Scope EP Series Educational Microscope
$155.00

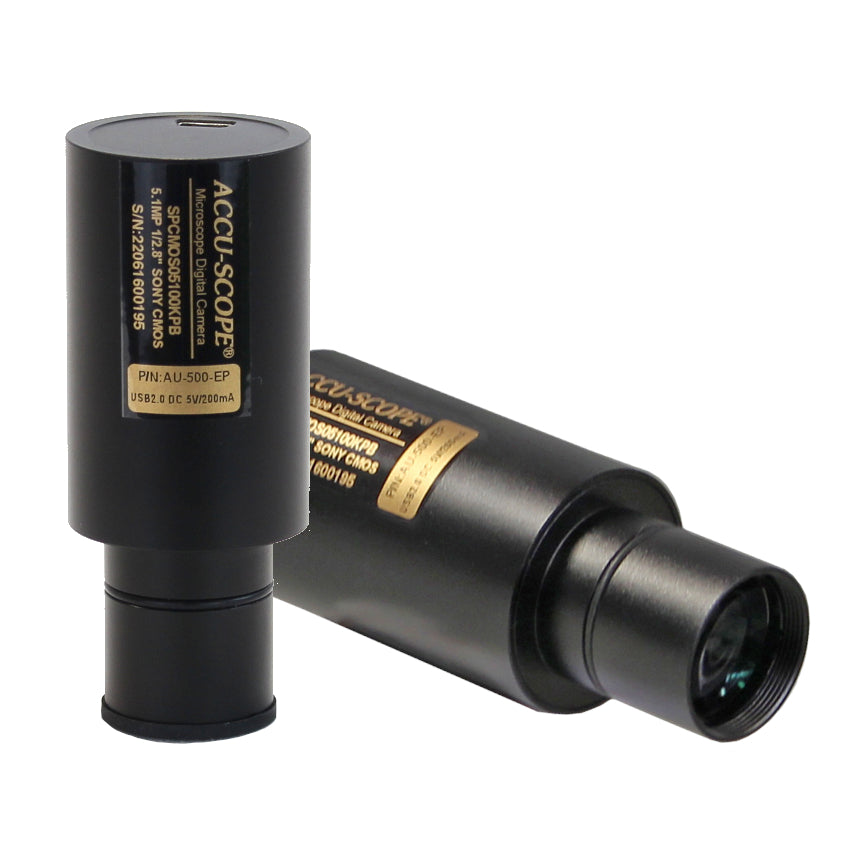

The ACCU-CAM 500 color microscopy camera provides an affordable imaging solution for a variety of applications. Simply replace an eyepiece with this small camera, connect to a PC, and you are viewing microscopy images like never before. Our AccuView software provides full control of the camera for viewing, acquisition, image processing and measurement. We support both Windows and MacOS operating systems
Specifications
MODEL: AU-500-EP
SENSOR: Sony STARVIS IMX335 color CMOS
SENSOR SIZE: 1/2.8″; no C-mount adapter needed
RESOLUTION: 5.1MP; 2592 (H) x 1944 (V)
PIXEL SIZE: 2.0µm x 2.0µm
FRAME RATE: 29fps @ full frame (2592×1944)
SHUTTER MODE: Rolling
IMAGE TRANSMISSION: USB 2.0
EXPOSURE TIME: 0.1ms-2000ms
AUTOMATIC SETTINGS: Exposure, White Balance
MANUAL SETTINGS: Exposure, Brightness, Contrast, Gamma, Chroma, Hue, Saturation
SPECTRAL RANGE: 380-750nm
ADC DEPTH: 12bit
OPERATING CONDITIONS: -10-50°C
DATA INTERFACE: USB 2.0
POWER SUPPLY: Through USB cable
CAMERA SIZE / WEIGHT: 70 x 33 x 42.5mm / 100g
PC Imaging Software:
ACCU-VIEW Imaging Software for Windows and MacOS
Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching (requires mechanical stage)
Image Types: TIF, JPG, PNG
Video Types: MJPEG
TWAIN and DirectShow plugins available
Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching (requires mechanical stage)
Image Types: TIF, JPG, PNG
Video Types: MJPEG
TWAIN and DirectShow plugins available
System Requirements (for PC Imaging Software)
Intel Core 2, 2.8GHz or higher; 16GB RAM or more; USB 2.0 Hi-Speed port or higher
Windows 7, 8, 10, 11 (64-bit recommended); Mac OS 10.4 or higher
Windows 7, 8, 10, 11 (64-bit recommended); Mac OS 10.4 or higher
